Choosing the right rotation angle is an important part of selecting a high torque rotary cylinder for your specific equipment and application requirements.
Product Overview
High torque rotary cylinders from EVER POWER are widely used in port terminals, construction machinery, and heavy industrial facilities. They can be configured with different rotation angles to match the movement requirements of various equipment.
Core advantages include strong torque output, robust construction, precise angular control, long service life, and the ability to customize rotation angle for specific applications.
Technical Parameters
| Parameter | Specification |
|---|---|
| Maximum Torque Output | Up to 130000 Nm |
| Rotation Angle | 90 degree to 360 degree (customizable) |
| Operating Pressure | Up to 210 bar |
| Operating Temperature | -20 degree C to +80 degree C |
| Mounting Options | Flange or foot mounting, custom available |
Working Principle and Structure

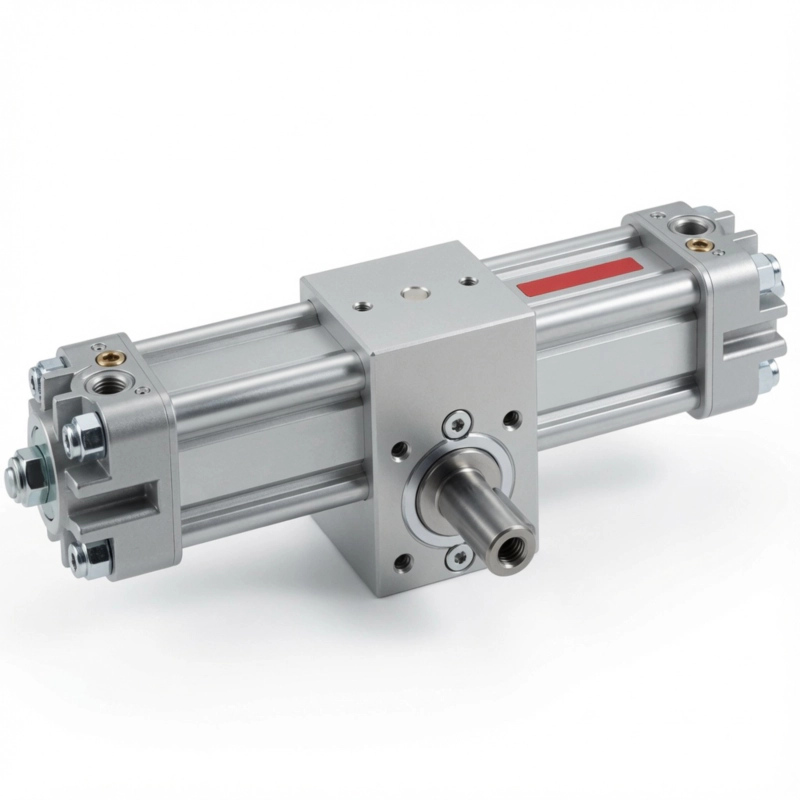

High torque rotary cylinders convert hydraulic pressure into rotational motion through internal pistons or vanes that drive a central shaft. The structure includes a heavy-duty housing, precision-machined components, reinforced bearings, and marine-grade sealing systems. The rotation angle determines how far the output shaft can turn, which directly affects equipment movement and operational efficiency.
Core Advantages
1. Precise Movement Control
Correct rotation angle ensures accurate positioning for equipment operations.
2. Optimized Equipment Performance
Matching the rotation angle to application needs improves overall operational efficiency.
3. Reduced Mechanical Stress
Proper angle selection helps avoid unnecessary stress on the cylinder and connected components.
4. Better Safety
Correct rotation range helps prevent over-rotation and potential equipment damage.
5. Improved Energy Efficiency
Matching the angle to actual needs can help optimize hydraulic system performance.
6. Customization Flexibility
Rotation angle can be customized to meet specific equipment movement requirements.
Structure and Material Craftsmanship
These cylinders use heavy-duty alloy steel housing with precision-machined internal components. High-strength bearings and marine-grade seals support reliable performance. The rotation angle is determined by the internal design and can be customized during manufacturing to match specific application needs.
Typical Application Scenarios
Port Cranes
Used for rotating heavy loads during cargo handling. The correct rotation angle ensures efficient and safe movement.
Hatch Cover Systems
Requires specific rotation angles for opening and closing heavy hatch covers on vessels.
Construction and Heavy Machinery
Applied in equipment where precise rotational movement within a defined range is required.
Industrial Automation
Supports controlled rotational movement in automated systems where specific angles are needed for positioning.
Selection Guide
When choosing the right rotation angle for your rotary cylinder application, consider:
- The actual movement range required by your equipment
- Whether the application needs limited or full rotation
- Space constraints that may affect rotation range
- Safety requirements to prevent over-rotation
- Integration with other mechanical components
- Maintenance and inspection accessibility
Selecting the correct rotation angle helps improve performance, safety, and equipment longevity.
Brand Comparison for Reference
The table below provides a general comparison with other well-known brands for customer reference only. EVER POWER is an independent Dutch manufacturer. We mention these brands purely to help customers identify equivalent specifications for selection purposes. We do not sell counterfeit products and have no affiliation with the brands listed.
| EVER POWER Model | Comparable Models (Reference Only) | Key Advantage |
|---|---|---|
| EP-RC Series | Parker, Eaton, Bosch Rexroth | Flexible rotation angle customization with strong marine protection |
Quality Certification and Service Commitment
All EVER POWER high torque rotary cylinders carry CE certification. We provide standard warranty, technical support, and spare parts availability. Our team offers guidance on selecting the appropriate rotation angle for your application.
Frequently Asked Questions
How do I determine the correct rotation angle?
Calculate the actual movement range required by your equipment and consider safety margins and space constraints.
Can rotation angle be customized?
Yes. Most manufacturers, including EVER POWER, can customize rotation angle according to your specific requirements.
What happens if the rotation angle is too large or too small?
An incorrect angle can lead to inefficient operation, mechanical stress, or safety issues. Proper selection helps avoid these problems.
Case Studies – Engineer On-site Notes
Netherlands – Port of Rotterdam
A terminal needed specific rotation angles for quay crane operations. Custom EVER POWER rotary cylinders with the correct angle improved operational efficiency and safety.
Germany – Industrial Facility
The plant required precise rotation angles for automation equipment. Custom rotary cylinders delivered better positioning accuracy and reduced mechanical issues.
Singapore – Offshore Support Vessel
An operator selected rotary cylinders with customized rotation angles for deck cranes. The units provided reliable performance with good space efficiency in marine conditions.
Partner with EVER POWER
EVER POWER is a Dutch company focused on delivering reliable high torque rotary cylinders for port and industrial applications. We provide technical support to help customers select the appropriate rotation angle for their equipment.
If you need assistance with selecting or customizing rotary cylinders for your application, we welcome the opportunity to discuss your requirements.
